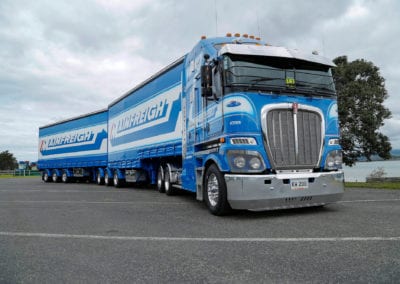

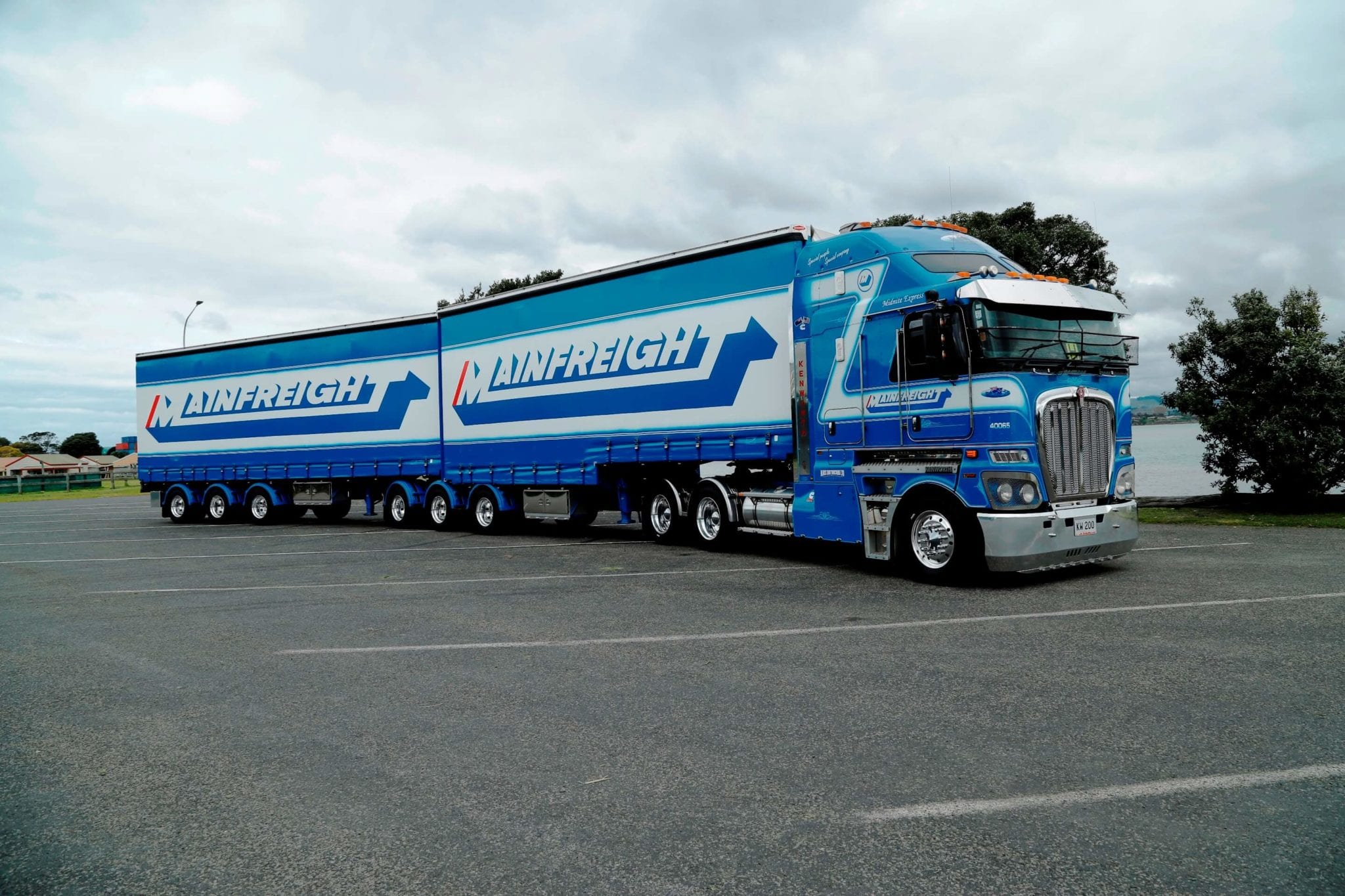

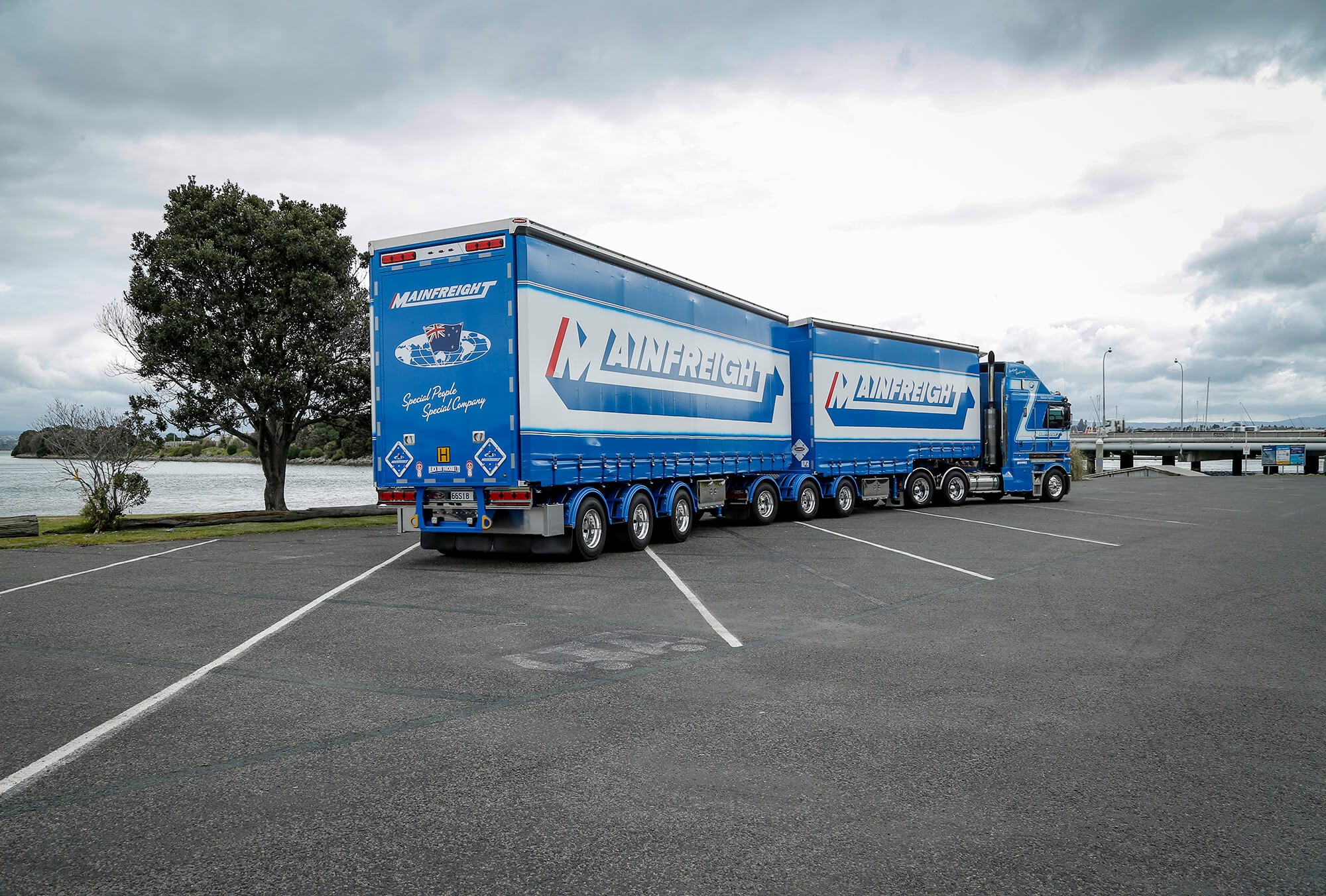

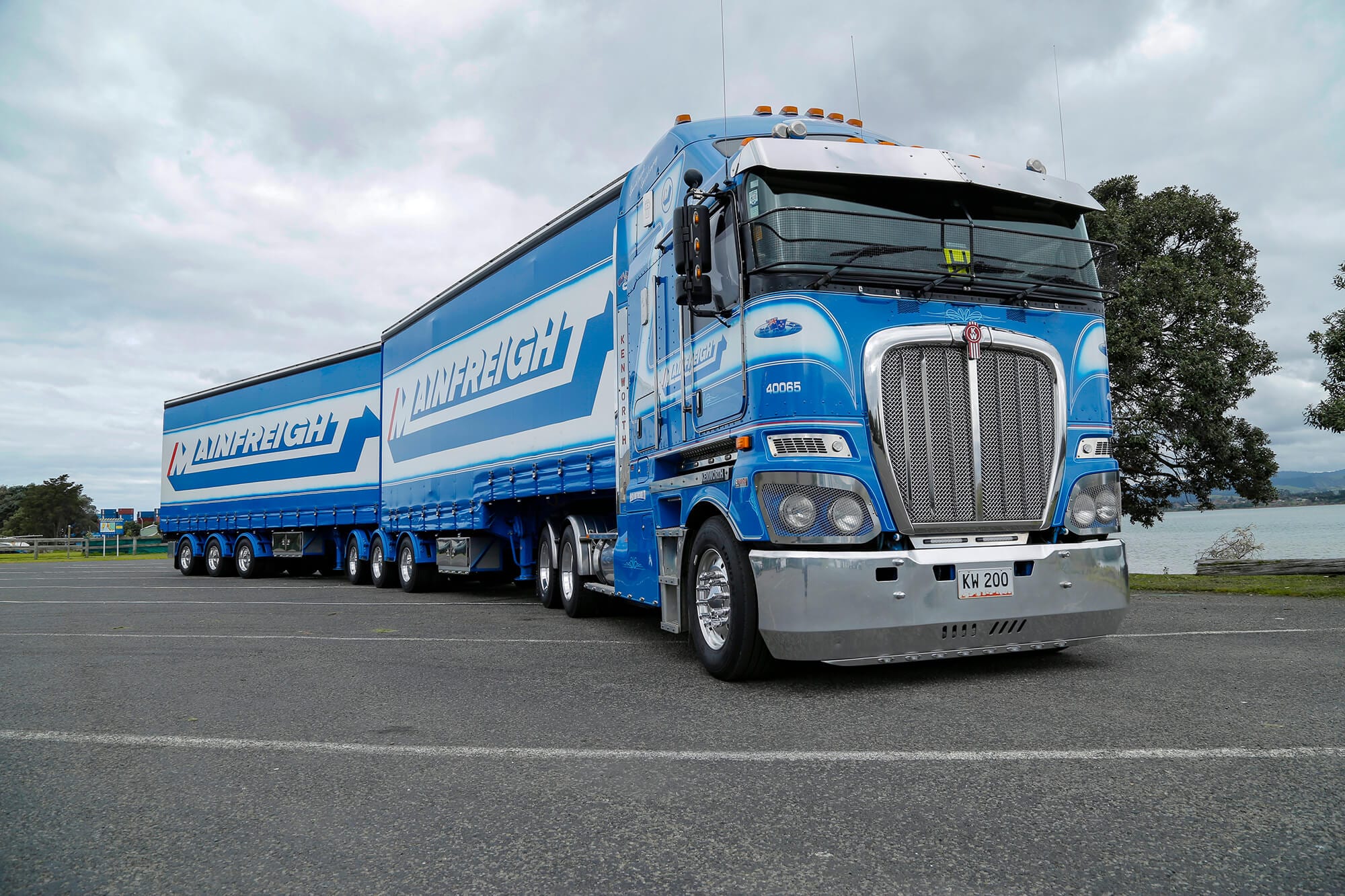

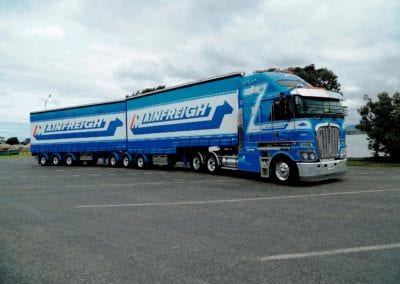

'Generation Series' 6 Axle B-Train Curtain Sider

OUR 6 AXLE B-TRAIN CURTAIN SIDER
HAS BEEN FIELD TESTED AND HAS EARNED IT’S RIGHTFUL PLACE IN OUR
‘GENERATION SERIES’

Domett 6 Axle B-Train Curtain Siders are renowned for their durability, superior finishing and paintwork whilst ensuring optimum tare weight and payload. No matter what you are carting our B-Train units are purpose built to the individual and unique requirements our customer needs to operate in today’s freight environment.



See below to find out more about our ‘Generation Series’ 6 Axle B-Train Curtain Side Truck and Trailer units or to enquire about booking a time to start building a plan for your new trailer unit.

“To put it simply the Generation Series truck and trailers have been handpicked to include a premium range of features, but at a highly competitive price!”

UNIQUE FEATURES OF OUR
‘GENERATION SERIES’

6 AXLE B-TRAIN CURTAIN SIDER UNIT

DIMENSIONS / SPECIFICATIONS
  • 36 pallet capacity with HPMV permit
  • Estimated Tare weight – 10,800kg
  • Front trailer length – 8.23m (internal)
  • Rear trailer length – 10.23m (internal)
ENJOY GREATER STRENGTH AND LIGHTER TARE WEIGHT
  • Main beams fabricated from medium to high tensile steel
  • Beam sections are high definition CNC plasma cut to protect cross member connections
PERFORMANCE AND STYLE
  • SAF Intradisc disc braked axles with integrated air suspension
  • Wabco EBS braking system (12-24 volt) to NZ heavy vehicle brake code (includes certification)
  • Grease filled wheel hubs including hubometer
  • 19.5” Alcoa alloy rims with Dura-Bright outers
  • Firestone TSP3000 205/7OR tyres (no spare or carrier included)
  • Chrome nut covers and hub caps
  • Full load landing legs and no-lube Holland 5th wheel
DURABLE YET LIGHTWEIGHT DECK AND FITTINGS
  • 2.5mm C-10 steel floors
  • Pressed steel cross members and coaming rails
  • Certified rope rails and chain slots on alternate cross members
  • Chain slots rated to 6,000kgs
  • Rope rails rated to 2,500kgs at cross-members
36 PALLET CAPACITY BODY
  • Slimline Holypan front walls over steel framing and bottom kick panel
  • Steel rear wall frame with one piece Holypan
  • Light-weight roof frame with one-piece alloy roof sheet
  • Sliding roof supports with locators (2 in front and 3 in rear)
SINGLE SKIN CLEAR COATED CURTAINS
  • Certified single skin non-insulated curtain including clearcoat
  • Stainless steel buckles on low stretch straps every 600mm
  • Flush mounted tie backs in walls
  • Variety of curtain signage options available (customer to organise)
NZ COMPLIANT ELECTRICAL AND LIGHTING

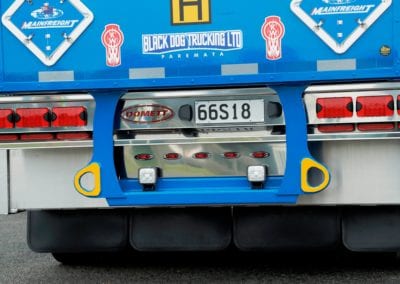

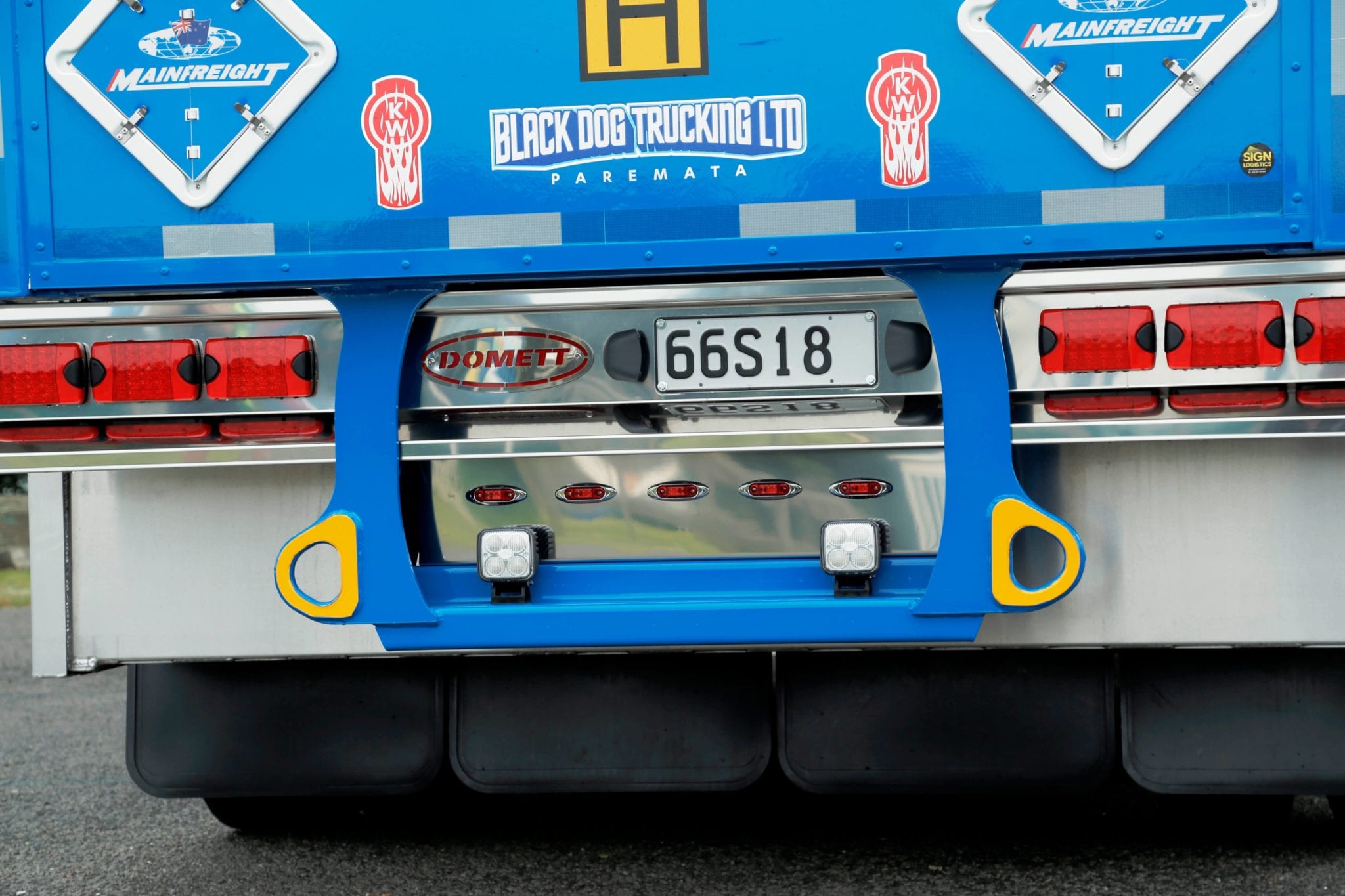

  • 6 x Hella LED stop/tail/indicator lights mounted to a stainless-steel light bar
  • LED top mounted rear lights (rear trailer only)
  • 18 x Hella LED clearance lights per side (8 front and 10 rear) with matching curtain track lights
  • 3 x Hella LED reverse lights (1 front and 2 rear)
  • Side indicators and night light fitted to both units
  • 7 pin male electrical coupling
WORLD-CLASS FITTINGS AND FINISHING
  • Both trailers are media blasted, primed and then top coated using a heavy duty electrostatic polyurethane coating to provide market leading performance
  • Resene paint products covered by a full paint performance warranty from Resene
  • Full plastic mudguards fitted over wheels, with alloy infill between guards and white mud flaps on the rear axle set

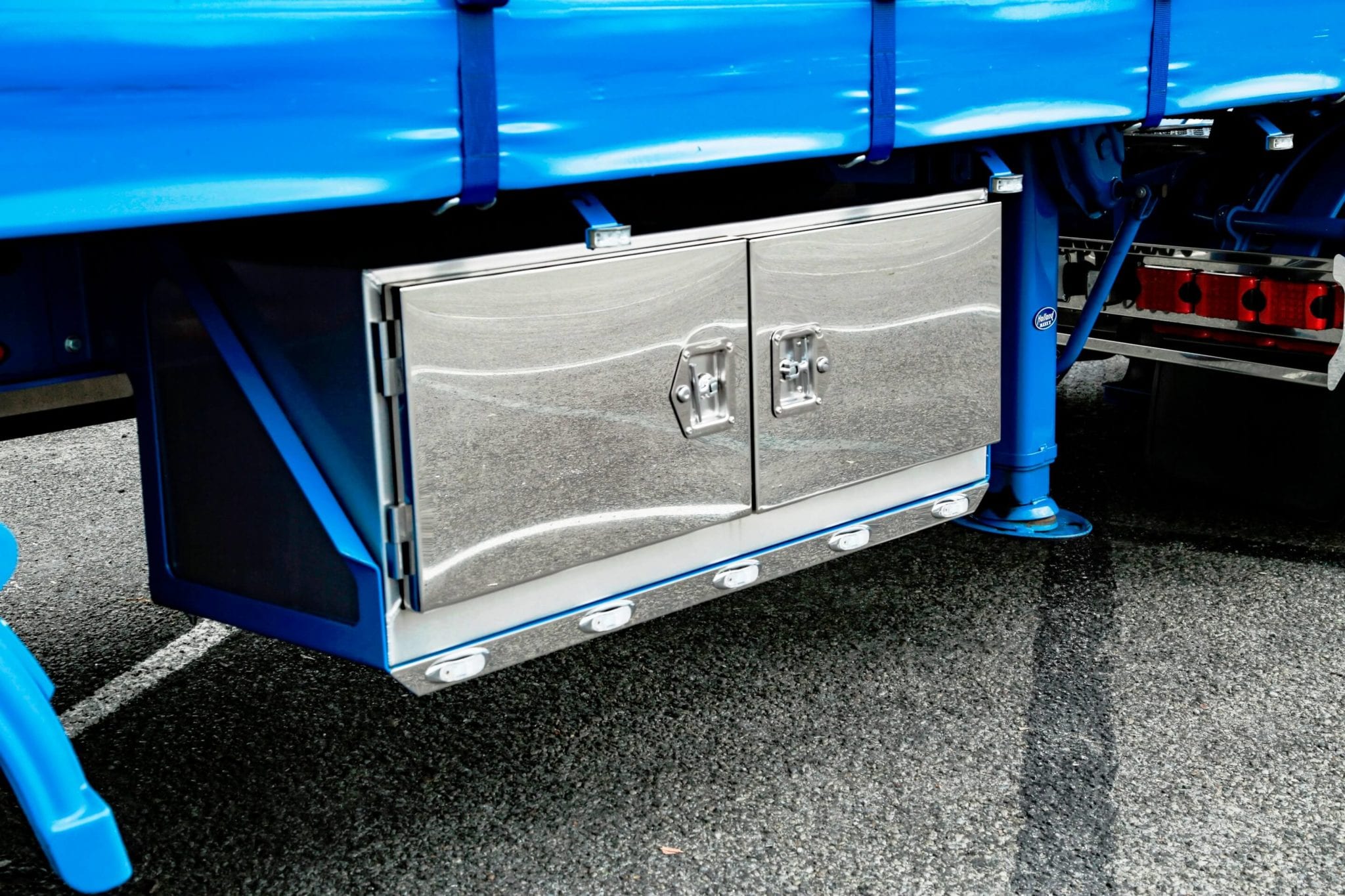

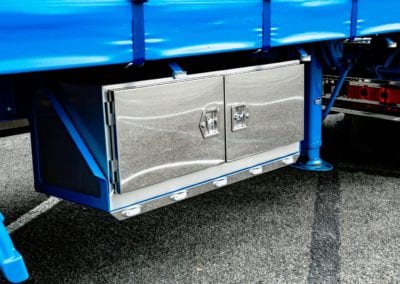

  • 4 x alloy toolboxes with polished stainless steel doors fitted to each unit (2 per unit)
  • East – West dunnage box fitted to rear trailer
  • Quirk tensioners mounted for easy access at both ends of each unit
  • Hi-vis tape fitted to rear wall

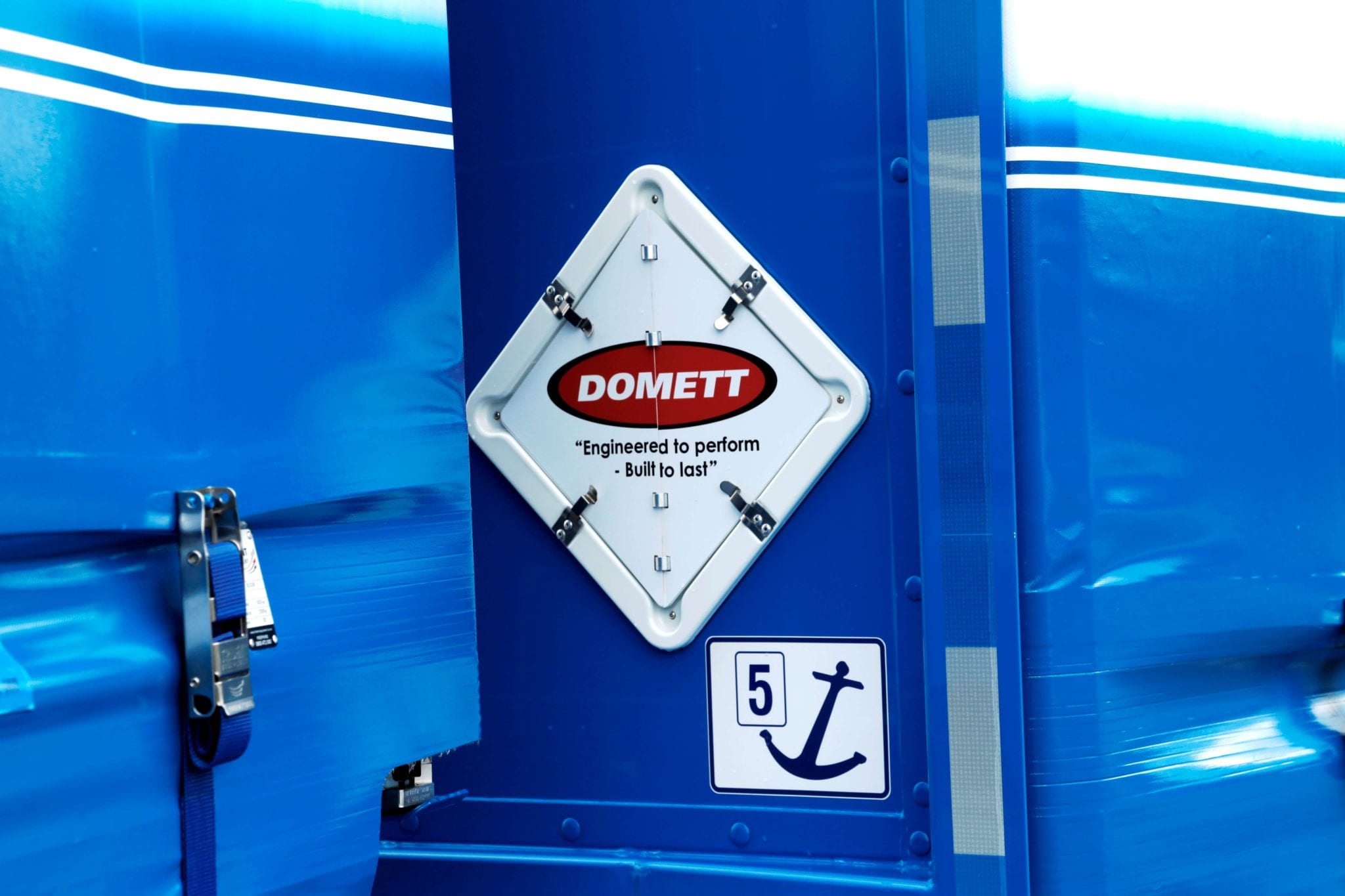

  • Ferry tie down points
MARKET LEADING AFTER SALES SUPPORT
  • 2 years or 300,000km warranty
  • Free 3000km service check at our factory or at an authorised service agent.
  • Access to our online trailer login for unit specifications, service manuals and certifications
  • Ongoing part and service available
  • Comprehensive operator’s manual provided on trailer handover

DISCLAIMER: Sample photos only. All specifications refer to the trailer units only
