With proven performance both on & off road, the 5 axle Livestock Low Deck Trailer joins our ‘Generation Series’

Born in design, your trailer is purpose built using leading edge low deck height livestock manufacturing techniques ensuring you get a lightweight trailer that will provide optimal performance and handling trip after trip.



See below to find out more about our ‘Generation Series’ 5 Axle Livestock Low Deck Trailers or to enquire about booking a time to start building a plan for your new trailer unit with our experienced and knowledgeable team.



“To put it simply the Generation Series truck and trailers have been handpicked to include a premium range of features, but at a highly competitive price!”

UNIQUE FEATURES OF OUR
‘GENERATION SERIES’

5 AXLE LOW DECK HEIGHT LIVESTOCK TRAILER

DIMENSIONS / SPECIFICATIONS
  • Length – 10.365m (34 ft)
  • 990mm low deck height
  • Estimated Tare weight – 5,780kg
DEDICATED LIVESTOCK UNIT WITH A 990MM LOW DECK HEIGHT
  • 2.5mm C-10 steel floor with internal crate tie down points
  • Pressed steel cross members
  • Profiled coaming bar with 40mm upstand
  • Finished low deck height of 990mm
  • Air operated telescopic drawbar with cast hinges, tapered bushes and 50mm toweye
  • As a dedicated livestock unit, no load anchorage required

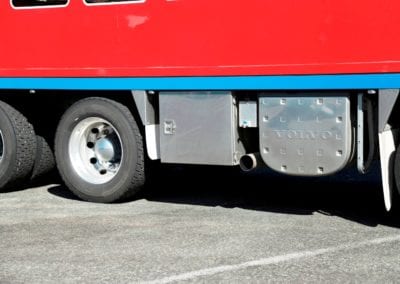

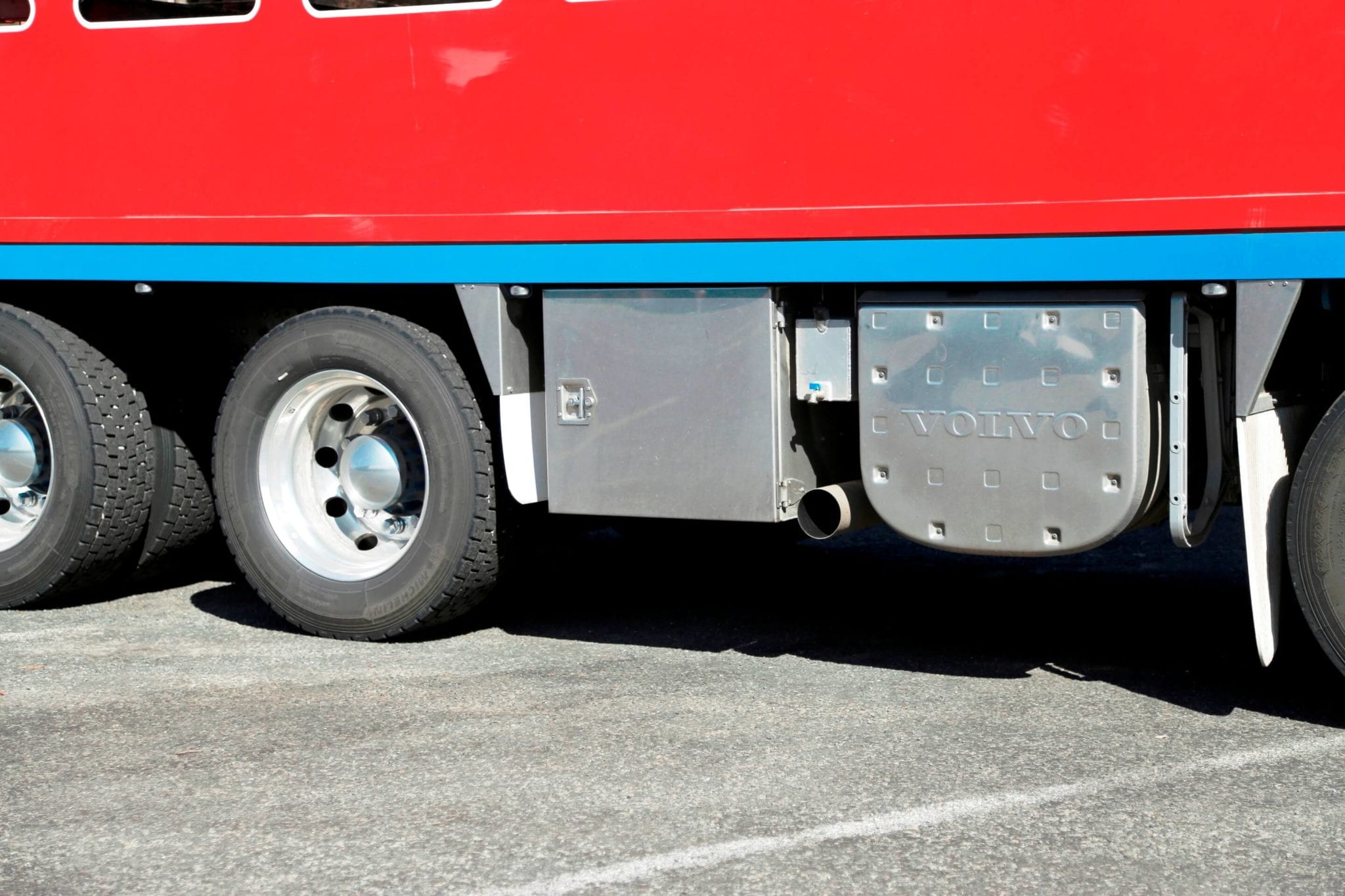

  • Two large capacity effluent drain troughs with one heavy duty lightweight alloy effluent tank and a Valterra air operated discharge valve
ENJOY GREATER STRENGTH AND LIGHTER TARE WEIGHT
  • Main beams fabricated from medium to high tensile steel
  • Beam sections are high definition CNC plasma cut to protect cross member connections
RELIABILITY AND PEACE OF MIND WHERE IT REALLY MATTERS
  • SAF Intradisc disc braked axles with integrated air suspension
  • Wabco EBS braking system (12-24 volt) to NZ heavy vehicle brake code (includes certification)
  • Triomatic coupling fitted to trailer for tele drawbar operation
  • Grease filled steel hubs with Data-trac electronic hubometer
PERFORMANCE AND STYLE

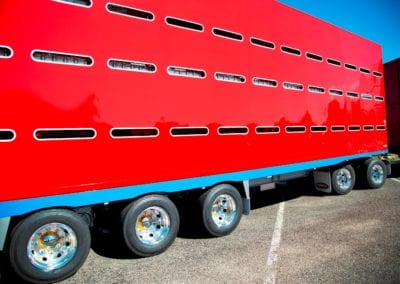

  • 19.5” Alcoa alloy rims with Dura-Bright outers
  • Bridgestone 265/70R R294 tyres (no spare or carrier included)
  • Chrome nut covers and hub caps

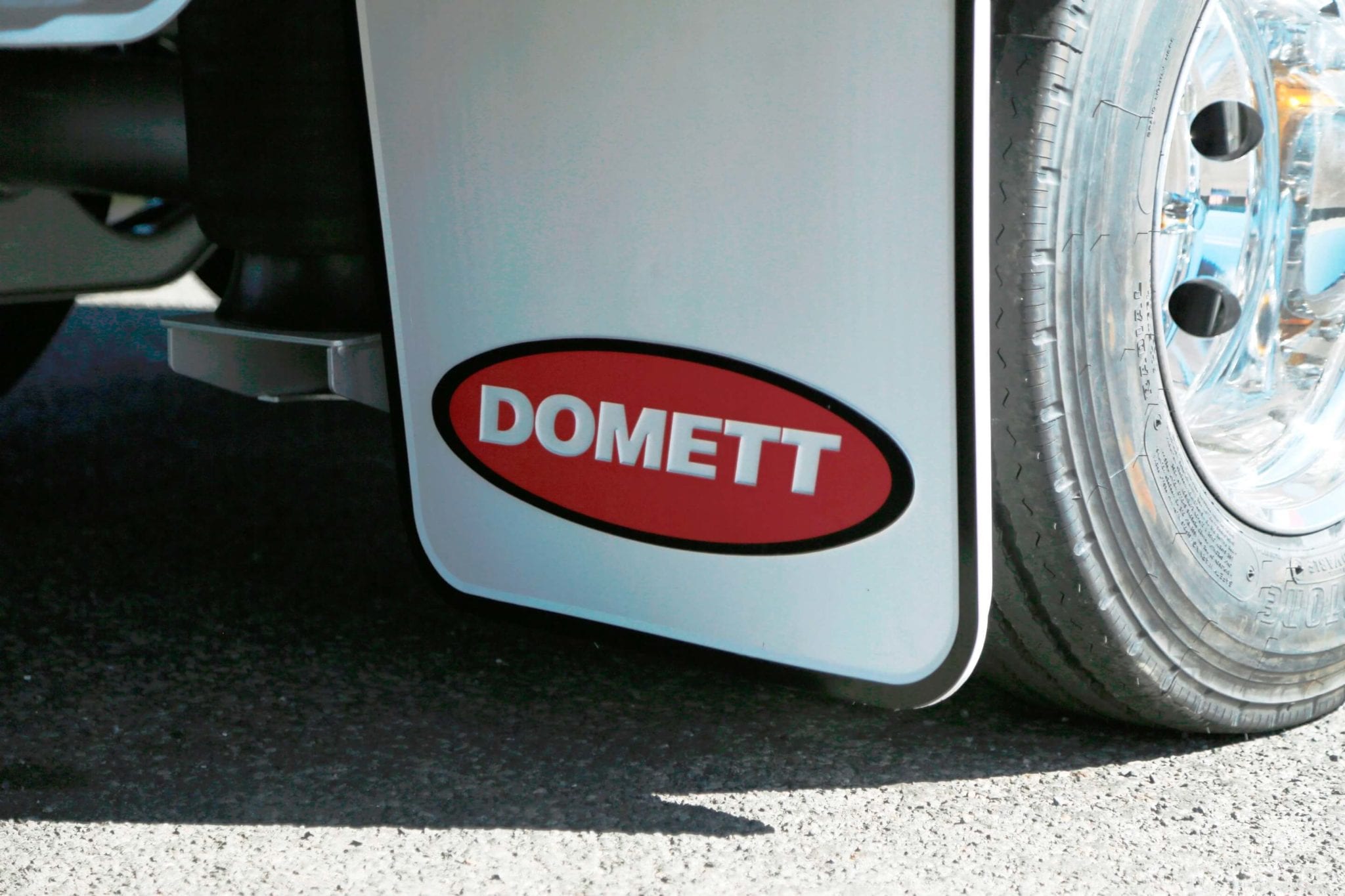

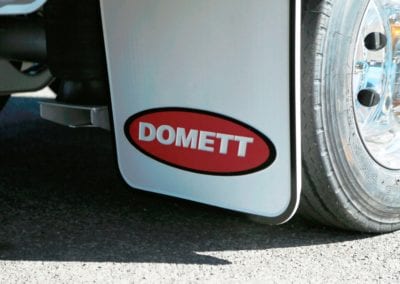

  • Alloy half guards with white mud flaps on the front and rear of both axle sets
NZ COMPLIANT ELECTRICAL AND LIGHTING

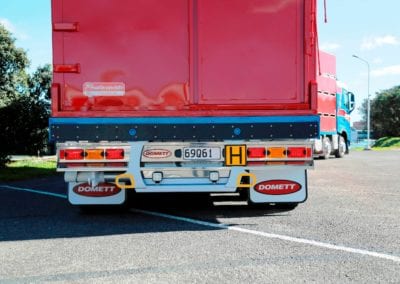

  • 6 x Hella LED stop/tail/indicator lights mounted to a stainless-steel easy clean hinged light box
  • 7 x Hella LED clearance lights per side
  • 1 x side indicator per side
  • 2 x Hella LED reversing lights
  • 13 pin male electrical coupling
WORLD-CLASS FITTINGS AND FINISHING
  • Trailer chassis is media blasted, primed and then top coated using a heavy duty electrostatic polyurethane coating to provide market leading performance
  • Resene paint products covered by a full paint performance warranty from Resene
  • BPW 90/14 double row ball race
  • Teflon strips fitted to protect front and rear cross members
  • Rear tow hooks, ferry tie down and brake testing tie points fitted
  • ECAS height control for easy deck height adjustment with auto return
  • Includes VIN, COF & Registration and plastic holders for licence/registration/RUC and HPMV attributes
MARKET LEADING AFTER SALES SUPPORT
  • 2 years or 300,000km warranty
  • Free 3000km service check at our factory or at an authorised service agent.
  • Access to our online trailer login for unit specifications, service manuals and certifications
  • Ongoing part and service available
  • Comprehensive operator’s manual provided on trailer handover

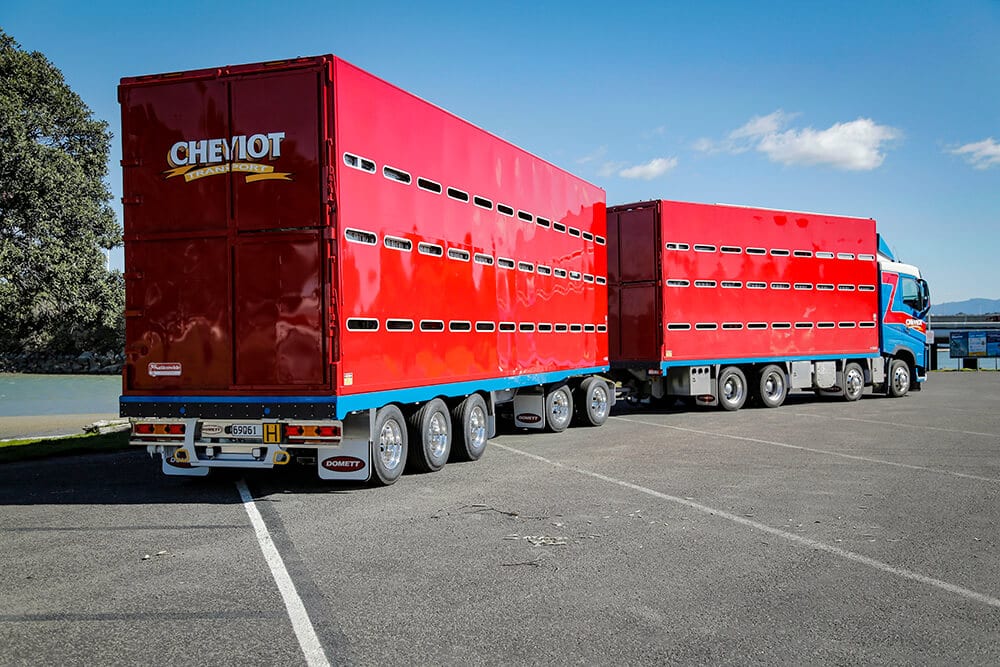

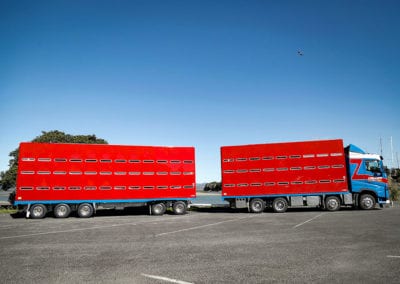

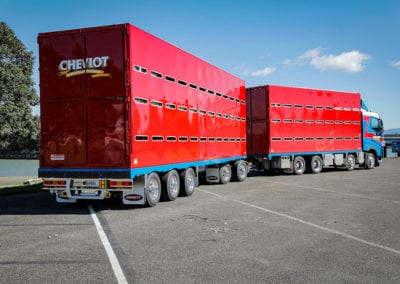

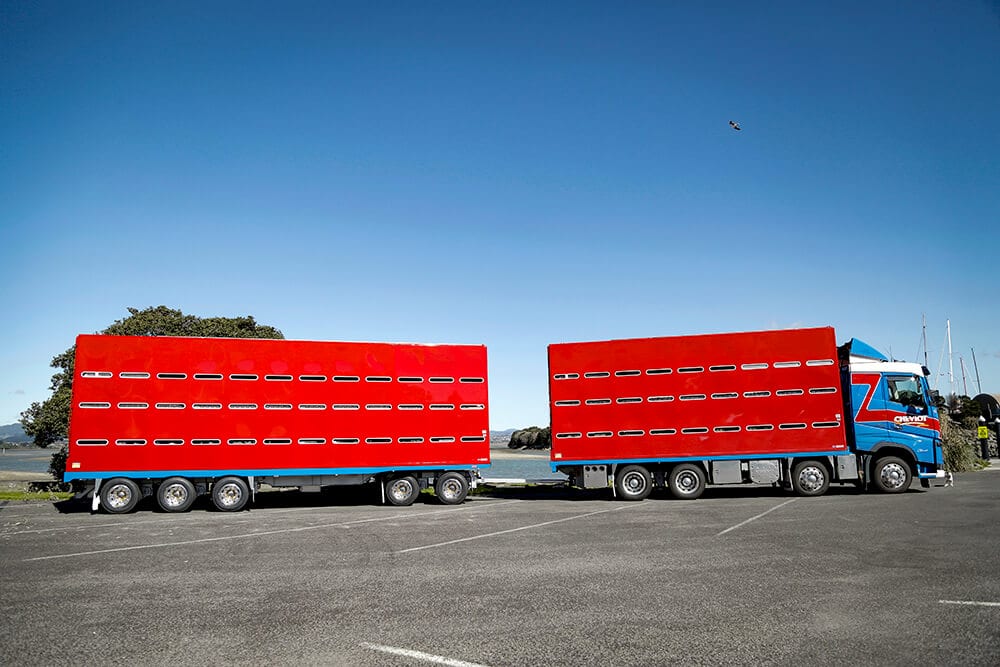

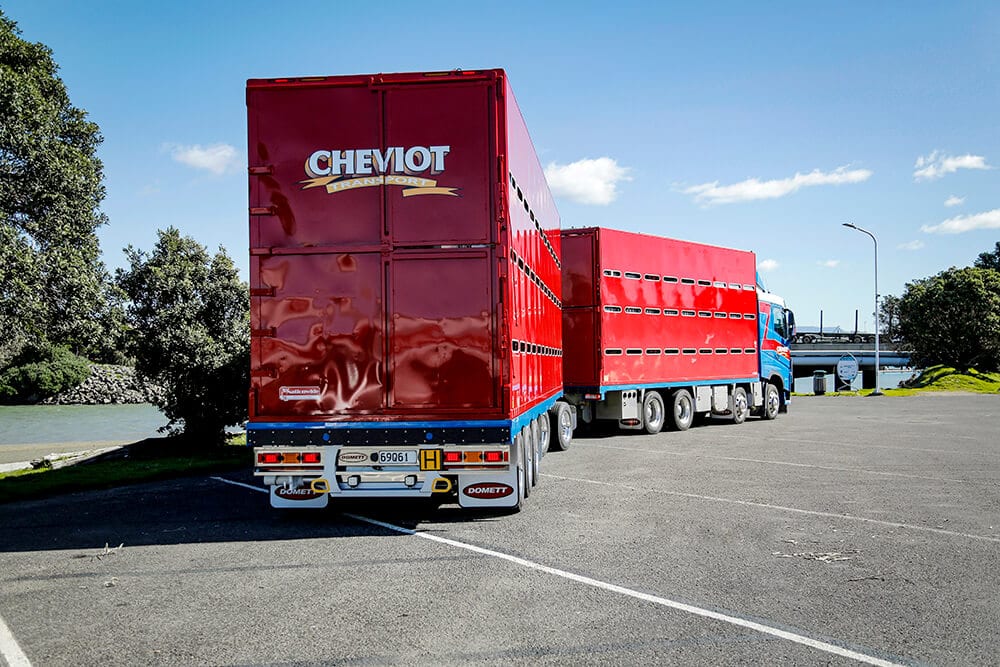

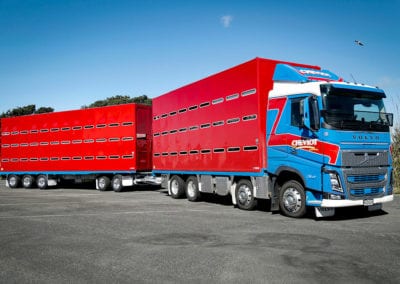

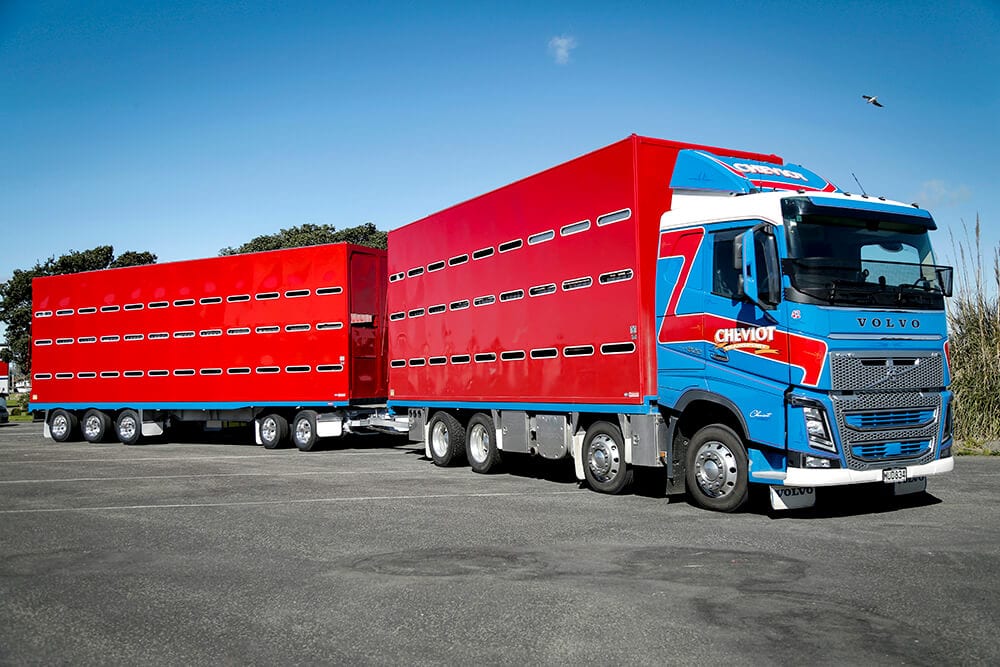

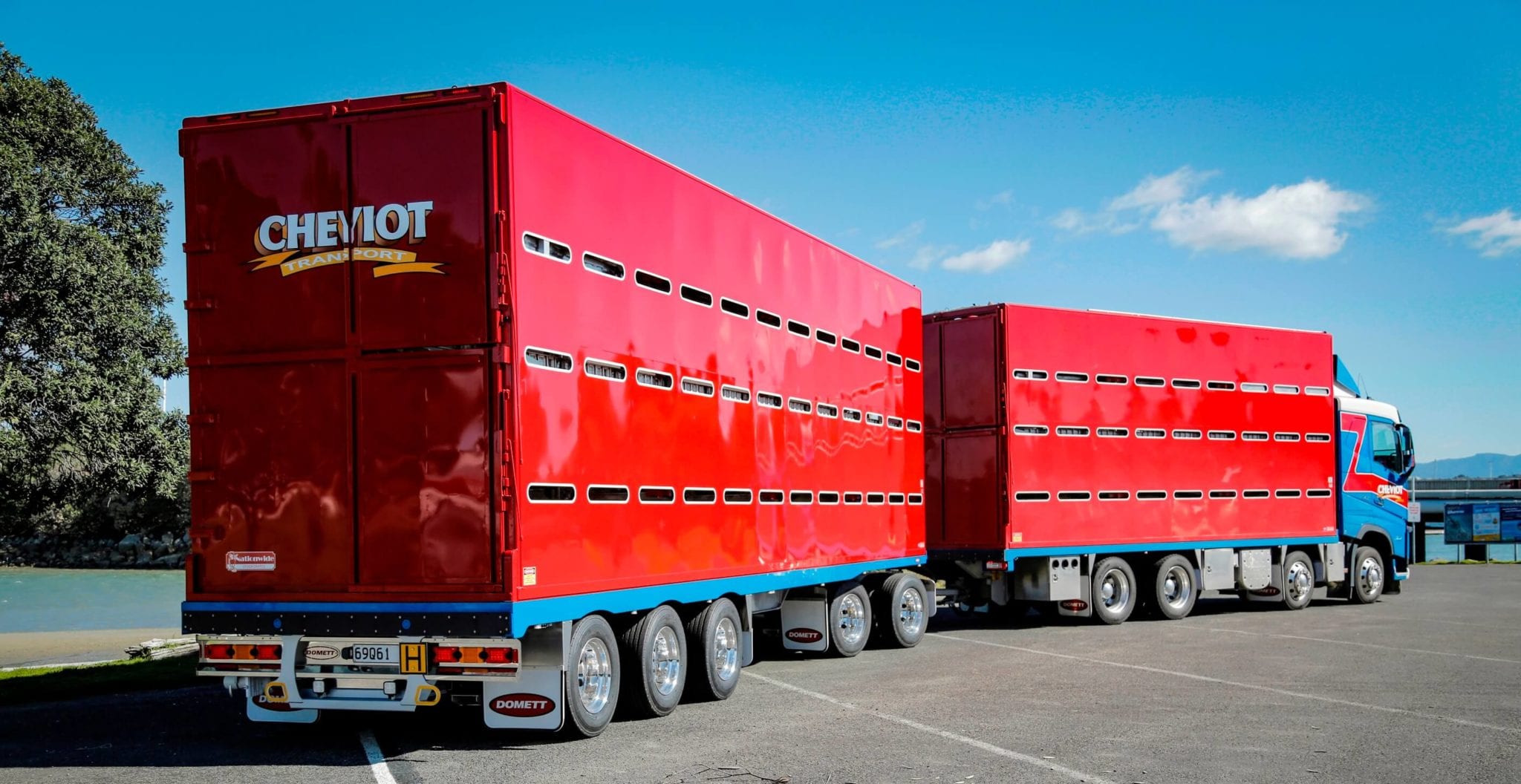

DISCLAIMER: Sample photos only. All specifications refer to the trailer only.
