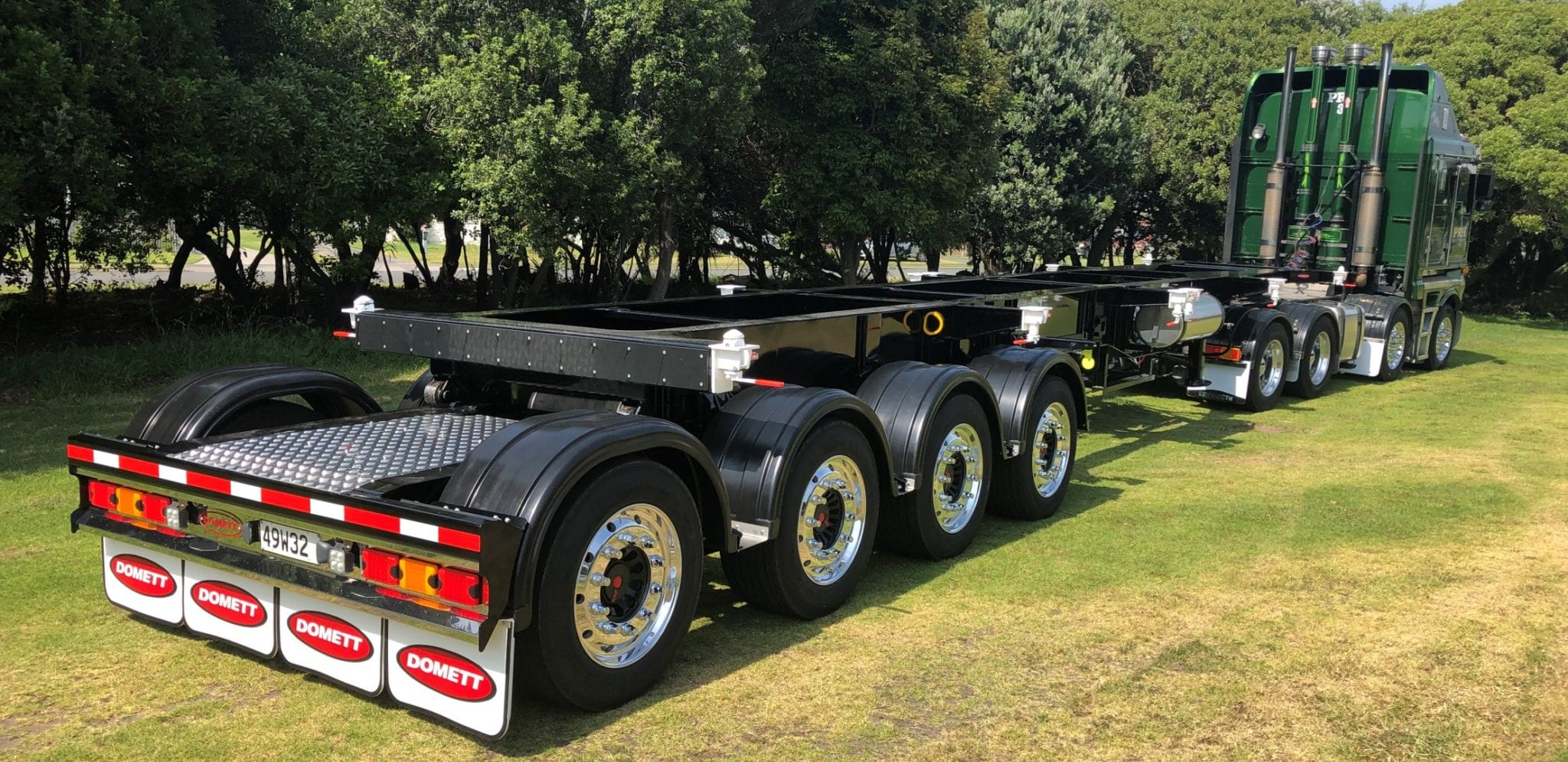

'Generation Series' 4 Axle Quad Sliding Skeletal Trailer

OUR 4 AXLE QUAD sliding skeletal trailer has earned its rightful place in the domett ‘GENERATION SERIES’

The Domett 4 Axle Quad Sliding Skeletal is renowned for it’s light tare weight which allows for greater payloads and lower fuel costs. Transporting containers to and from the port, warehouse or your depot/yard is easy with this high-performance setup that you can rely on to deliver day in and day out.



See below to find out more about our ‘Generation Series’ 4 Axle Quad Sliding Skeletal trailer or to enquire about booking a time to start building a plan for your new trailer unit.

“To put it simply the Generation Series truck and trailers have been handpicked to include a premium range of features, but at a highly competitive price!”

UNIQUE FEATURES OF OUR
‘GENERATION SERIES’

4 AXLE QUAD SLIDING SKELETAL TRAILER

DIMENSIONS / SPECIFICATIONS
  • Length – 13.5m
  • Height – 1.38m with 1200mm 5th wheel height to suit high cube containers
  • Rear Spread – 4,000mm
  • Wheelbase – 9,200mm
  • Gross Vehicle Mass (GVM) – 42,000kg
  • Estimated Tare Weight – 5,650kg
ENJOY GREATER STRENGTH AND LIGHTER TARE WEIGHT
  • Main beams fabricated from medium to high tensile steel
  • Beam sections are high definition CNC plasma cut to protect cross member connections
PERFORMANCE AND STYLE
  • 22.5” Alcoa super single polished alloy rims
  • 8 x Double Coin RT920 355/50 R22.5 tyres (no spare or carrier included)
  • Full plastic mudguards fitted over wheels with stainless steel infill between guards and full width white mud flaps on the rear axle set
  • Tread plate rear chassis cover
RELIABILITY AND PEACE OF MIND WHERE IT REALLY MATTERS
  • SAF Intradisc disc braked axles with integrated air suspension
  • Wabco EBS braking system (12-24 volt) with PREV valve certified to NZ Heavy Vehicle Brake Rule
  • Alloy air tanks
  • Grease filled steel hubs

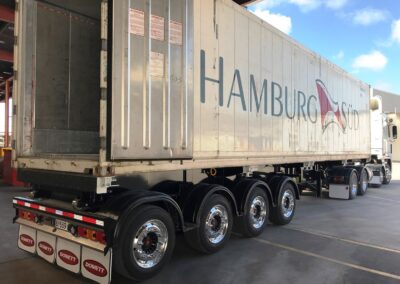

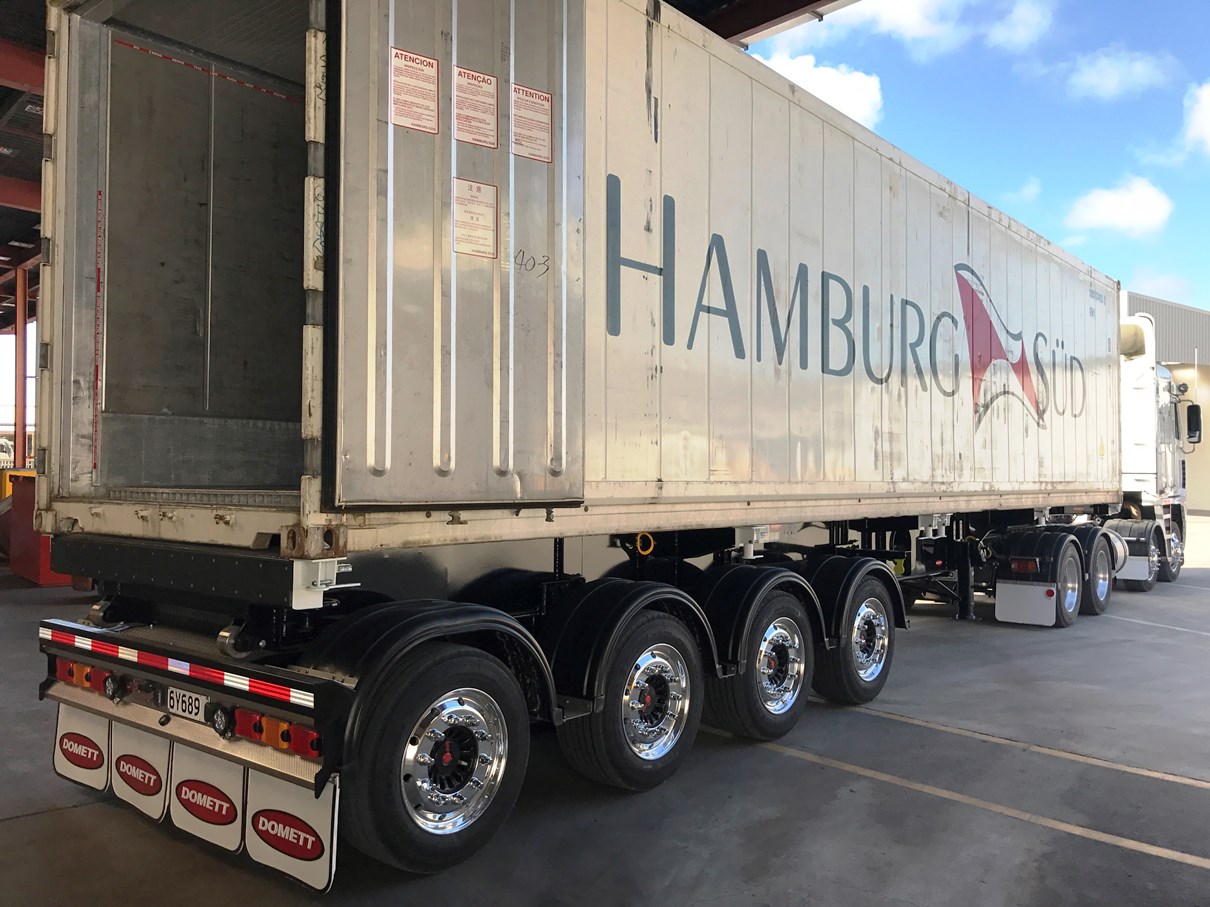

DEDICATED SKELETAL UNIT WITH A SLIDING BOGIE FOR DOCK LOADING
  • 6 x twist lock beams configured for 1 x 40ft (34,000kg), 1 x 20ft heavy (31,000kg) and 2 x light 20ft (18,000kg) container(s)
  • Purpose built for 40ft container dock loading
  • 2” Holland Kingpin and Landing Legs to suit 1200mm or less 5th wheel height
  • Optional extras includes swing lift pads and mid genset mounts
NZ COMPLIANT ELECTRICAL AND LIGHTING
  • 6 x Hella LED stop/tail/indicator lights mounted to a stainless-steel dimpled easy clean light box
  • 5 x Hella LED side lights per side
  • 1 x side indicator per side
  • 2 x Hella LED reversing lights
  • 7 pin male electrical coupling
WORLD-CLASS FITTINGS AND FINISHING
  • Trailer chassis is media blasted, primed and then top coated using a heavy duty electrostatic polyurethane coating to provide market leading performance
  • Resene paint products covered by a full paint performance warranty from Resene
  • ECAS height control for easy deck height adjustment with auto return
  • Includes VIN, COF & Registration and plastic holders for licence/registration/RUC and HPMV attributes
MARKET LEADING AFTER SALES SUPPORT
  • 2 years or 300,000km warranty
  • Free 3000km service check at our factory or at an authorised service agent.
  • Access to our online trailer login for unit specifications, service manuals and certifications
  • Ongoing part and service available
  • Comprehensive operator’s manual provided on trailer handover

DISCLAIMER: Sample photos only. All specifications refer to the trailer units only
