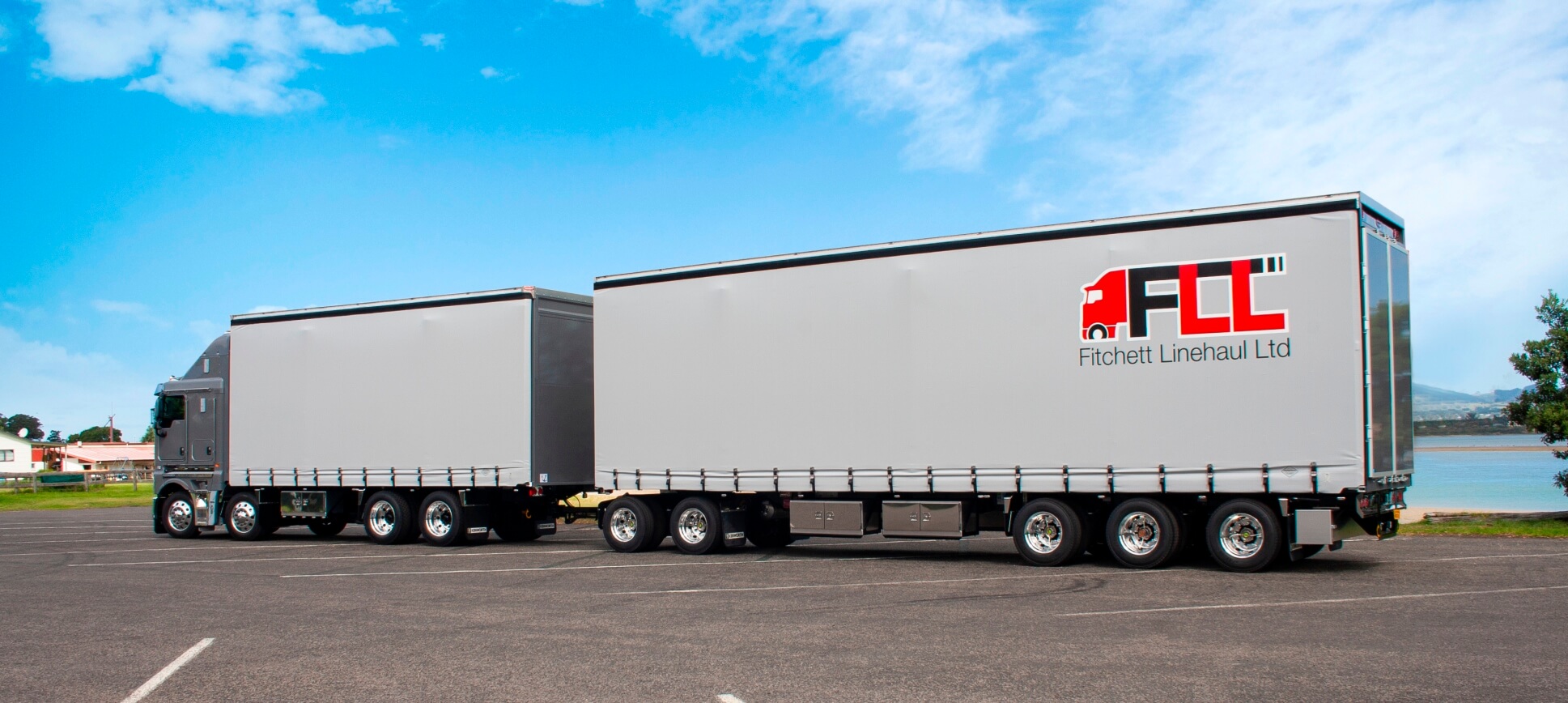

2012 5 AXLE CURTAINSIDE FULL TRAILER (E2001)
Serial Number: 1113
Trailer Specification
| Serial Number | 1113 |
|---|---|
| Model | E2001 |
| VIN | 7A9E20014C1023113 |
| GVM | 32000 |
| Registration | U438E |
| Fleet Number | NA |
| Axle Type | ROR LM/T9008 BMXA |
| Axle Rating | 9000kg |
| Suspension Type | ROR CS9 |
| Suspension Ride Height | 280mm |
| Brake System | WABCO EBS MULTIVOLT |
| Electrical | HELLA LED |
| Coupling | 50mm TOWEYE |
| Ballrace | BPW DK90/14 |
| Body Type | CURTAINSIDER |
| Tyre Make & Model | FIRESTONE TSP3000 265/70 R19.5 |
| Wheels | FULL CHAMP 19.5 INCH 8 STUD |
Dimensions
| Trailer Length | 13180 |
|---|---|
| Drawbar Length | 1740 |
| Front Overhang | 1520 |
| Rear Overhang | 2790 |
| Wheelbase | 7250 |
Certification
| Fifth Wheel | N/A |
|---|---|
| King Pins | N/A |
| 1113 Load Anchorage | 1113-Load-Anchorage-Cert.pdf |
| 1113 Drawbar | 1113-Drawbar-Cert.pdf |
| 1113 Chassis | 1113-Chassis-Cert.pdf |
| 1113 Brake Coding | 1113-Brake-Coding-Cert.pdf |
| 1113 SRT | 1113-SRT-Cert.pdf |
| 1113 Wheel alignment | 1113-Wheel-Alignment.pdf |
Important Information
| Wiring Diagram | Wiring_Diagram.pdf |
|---|---|
| Warranty & Insurance Information | Warranty__Insurance.pdf |
| Transpecs Wheel Nut Torque Specs | Transpecs_Wheel_Nut_Torque_Specs.pdf |
| Service Procedure | brake balance |
| ROR CS9 torque settings | ROR_CS9_torque_settings.pdf |
| Delivery Notice | IMPORTANT_NOTICE.pdf |
| Curtainsider Operation Warning | Curtainsider_Warnings.pdf |
Manuals
| Warranty Scope Wabco Products | Warranty_scope_Wabco.pdf |
|---|---|
| WABCO HC464 RIDE HEIGHT VALVE | WABCO-HC464-RIDE-HEIGHT-VALVE.pdf |
| ROR LM T9008 BMXA SERVICE MANUAL | ROR_LM_T9008_BMXA_SERVICE_MANUAL.pdf |
| ROR / Meritor Warranty Terms & Conditions | ROR_WARRANTY.pdf |
| Ride Height Adjustment Procedure | Ride_height_adjustment_procedure.pdf |
| PREV Park-release emergency valve operation | PREV_Operation.pdf |
| CS9 Suspension Manual | CS-Suspension-Jan-06.pdf |
| BPW Ballrace Maintenance | BPW_Ballrace_Maintenance.pdf |
